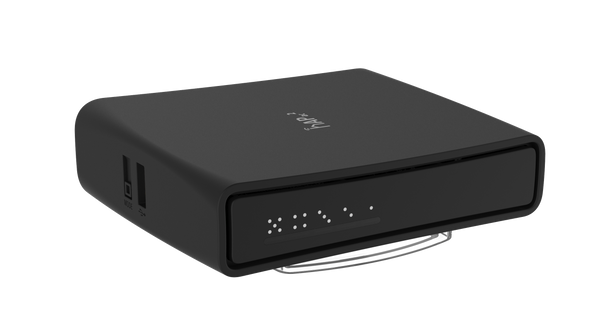

hAP ac2

$105.00
Write a Review
SKU:
RBD52G-5HacD2HnD-TC
Architecture:
ARM 32bit
CPU:
IPQ-4018
CPU core count:
4
CPU nominal frequency:
716 MHz
Dimensions:
34 x 119 x 98mm
RouterOS License level:
4
Operating System:
RouterOS
Size of RAM:
128 MB
Storage Size:
16 MB
Storage Type:
FLASH
Tested ambient temperature:
-40°C .. +50°C
PoE in:
Passive PoE
PoE in input Voltage:
18-28V
Number of DC inputs:
2 (DC jack, PoE-IN)
DC jack input Voltage:
12-30 V
Max power consumption:
15W
10/100/1000 Ethernet ports:
5
Number of USB ports:
1
Max USB current (A):
1
Wireless:
2.4GHz / 5GHz
Wireless 2.4 GHz number of chains:
2
Wireless 2.4 GHz standards:
802.11b/g/n
Antenna gain dBi for 2.4 GHz:
2.5
Wireless 2.4 GHz chip model:
IPQ-4018
Wireless 5 GHz number of chains:
2
Wireless 5 GHz standards:
802.11a/n/ac
Antenna gain dBi for 5 GHz:
2.5
Wireless 5 GHz chip model:
IPQ-4018

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

- hAP ac² supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Ethernet test results

RBD52G-5HacD2HnD-TC IPQ-4018 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162.5 1973.4 469.9 1924.7 1484.8 760.2
Bridging 25 bridge filter rules 162.1 1968.5 352.9 1445.5 359.2 183.9
Routing none (fast path) 162.5 1973.4 469.9 1924.7 1488 761.9
Routing 25 simple queues 162.5 1973.4 469.9 1924.7 506.3 259.2
Routing 25 ip filter rules 162.2 1969.8 240.8 986.3 242.9 124.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results


IPsec test results

RBD52G-5HacD2HnD-TC IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
